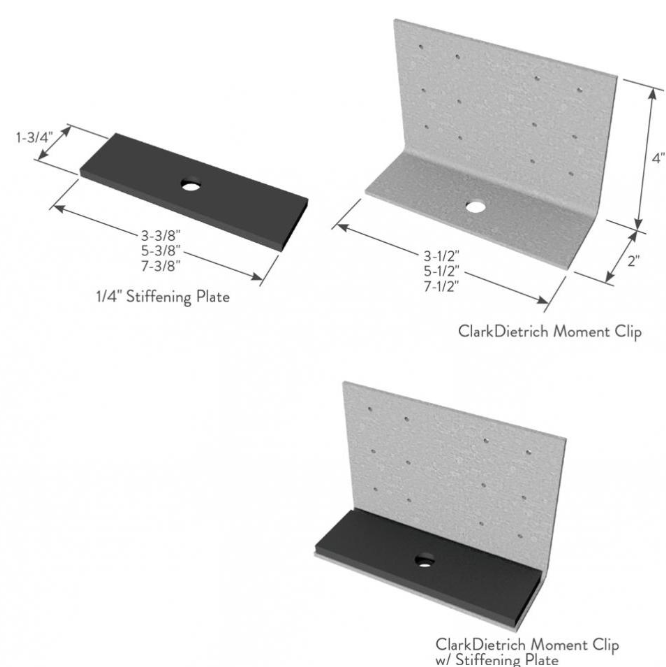

ClarkDietrich MC107 Moment Clip with Stiffening Plate - 2 x 4 x 7-1/2 in., 10 ga

MC107 is a 10 gauge moment clip, 7-1/2" tall, pre-punched with steel framing holes and a 1/2" anchor bolt hole for the foundation connection. The included 1/4" A36 stiffening plate is what carries the moment in kneewall and shear wall anchorage.

Product Information

• Thickness: 118 mil (10 gauge), 0.1242 in. design thickness
• Size: 2" x 4" x 7-1/2"
• Includes 1/4" thick A36 steel stiffening plate, 1-3/4" x 7-3/8"
• Pre-punched steel framing holes plus a 1/2" anchor bolt hole
• Yield strength: 50 ksi
• Coating: G90 (Z275) hot-dipped galvanized
• Meets or exceeds ASTM A36, A653, and A1003
• Common applications: knee wall-to-foundation connections, shear wall-to-foundation connections, uplift and torsional load transfer

Packaging: Sold individually or by the bucket of 25.

Manufacturer: View the ClarkDietrich Moment Clip (MC Series) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
