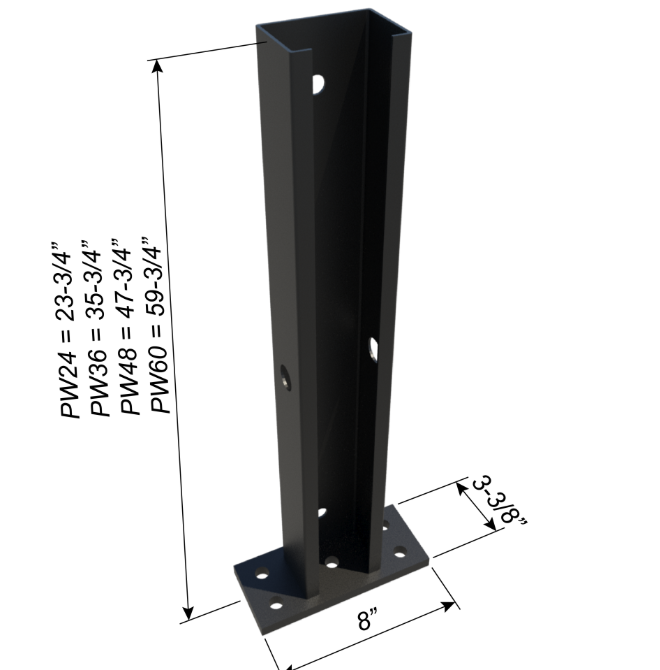

ClarkDietrich PW48 PONY WALL HEAVY (12 GA) 48IN

Formetal PW48 97 mils (12 gauge) Pony Wall Support | 48"

The ClarkDietrich Pony Wall is a partial-wall-to-floor connection that supports out-of-plane loads on cantilevered pony walls and knee walls unsupported at the top track. Loads transfer to the floor through a welded base plate. The Heavy series uses a 12-gauge structural stud for commercial and higher-load partial walls up to 48" tall.

Product Specifications

• SKU: PW48
• Overall Height: 47-3/4"
• Series: Pony Wall Heavy
• Stud Thickness: 0.1017" | 97 mils | 12 gauge
• Base Plate: 3-3/8" wide x 8" long, 1/2" thick ASTM A36 hot-rolled steel
• Stud Material: Structural Grade 50 (ST50H), 50 ksi (340 MPa)
• Standards: ASTM A36, A653/A653M, A1003
• Weight: 16.2 lbs per piece
• Packaging: Sold individually

Common Applications

• Cantilevered partial walls and pony walls
• Knee walls unsupported at the top track
• Half-height and railing walls
• Out-of-plane load transfer to the floor system

Installation

• Anchor the base plate to the floor structure as specified by the Engineer of Record (EOR).
• Attach framing studs to both flanges of the Pony Wall support.
• Use a minimum 12 gauge stud member with this connector.

Available for same-day customer pickup in Forest Park, GA (Atlanta area). No minimum order required. Contact our sales team for delivery pricing or volume quotes.
