ClarkDietrich X687 EasyClip X-Series Clip Angle - 2 x 2 x 7-3/4 in., 14 ga

X687 is a 68mil (14ga) EasyClip™ X-Series™ clip angle with 2" x 2" legs, 7-3/4" long. The wider leg compared with the U-Series gives more room for fasteners on the same lateral bridging connection in cold-formed steel framing.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness

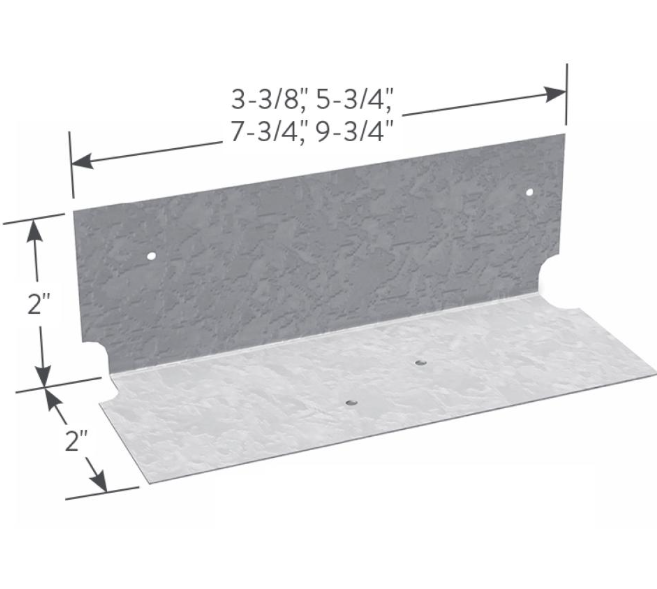

• Size: 2" x 2" x 7-3/4" (leg x leg x length)
• Legs: 2" and 2", pre-punched for screw attachment
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Sheet steel meets or exceeds ASTM A1003; galvanized coating meets or exceeds ASTM A653
• Common applications: lateral bridging, header and sill reinforcement, member-to-member connections

Packaging: Sold individually or by the bucket of 100.

Manufacturer: View the EasyClip™ X-Series™ Clip Angles page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
