ClarkDietrich X689 EasyClip X-Series Clip Angle - 2 x 2 x 9-3/4 in., 14 ga

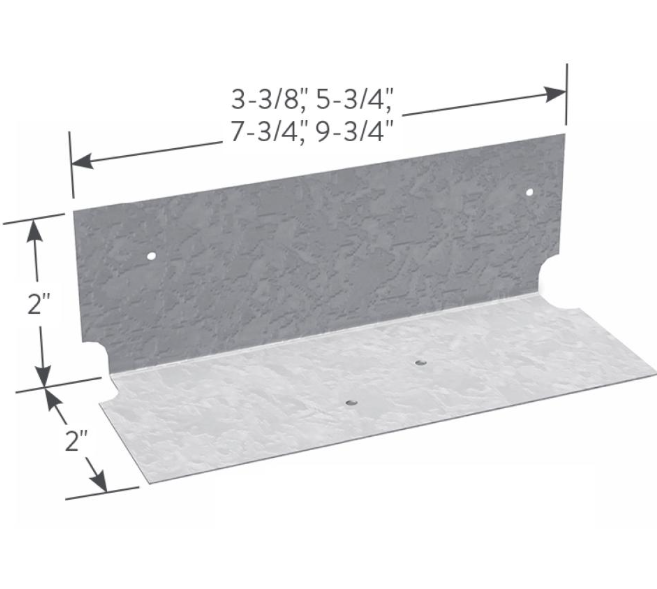

The X689 EasyClip™ X-Series™ clip angle measures 2" x 2" x 9-3/4" in 68mil (14ga) steel. Four pilot holes are provided for bridging work, and the clip also reinforces headers and sills in door and window openings.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Size: 2" x 2" x 9-3/4" (leg x leg x length)
• Legs: 2" and 2", pre-punched for screw attachment
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Sheet steel meets or exceeds ASTM A1003; galvanized coating meets or exceeds ASTM A653
• Common applications: lateral bridging, header and sill reinforcement, member-to-member connections

Packaging: Sold individually or by the bucket of 80.

Manufacturer: View the EasyClip™ X-Series™ Clip Angles page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
