ClarkDietrich X979 EasyClip X-Series Clip Angle - 2 x 2 x 9-3/4 in., 12 ga

X979 is the 12 gauge, 9-3/4" EasyClip™ X-Series™ clip angle. U-channel passes through the stud knockout and the clip is screwed or welded across it, while the 2" legs also suit member-to-member connections in metal stud framing.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness

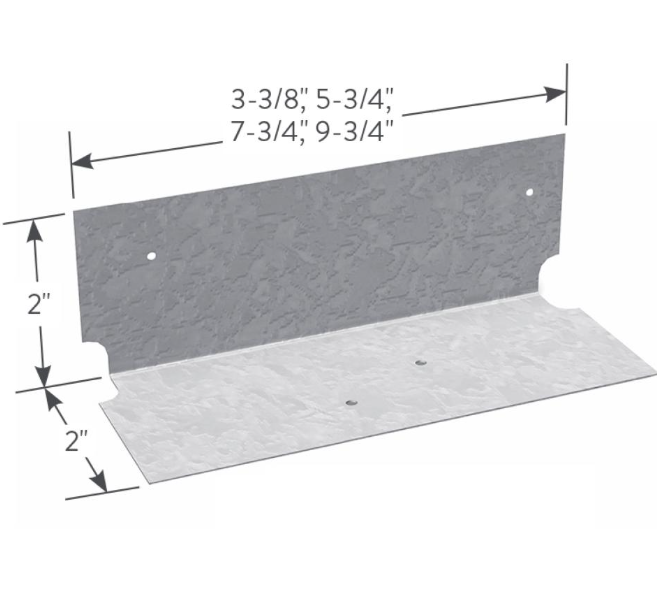

• Size: 2" x 2" x 9-3/4" (leg x leg x length)
• Legs: 2" and 2", pre-punched for screw attachment
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Sheet steel meets or exceeds ASTM A1003; galvanized coating meets or exceeds ASTM A653
• Common applications: lateral bridging, header and sill reinforcement, member-to-member connections

Packaging: Sold individually or by the bucket of 60.

Manufacturer: View the EasyClip™ X-Series™ Clip Angles page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
